OPzV Battery Specification
    Publish time 2018-08-08 00:00

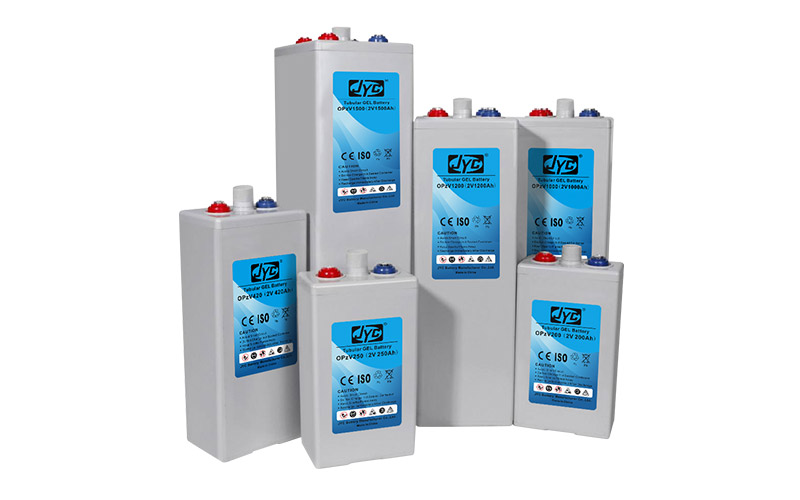

JYC Tubular Gel OPzV Battery Series is developed tubular positive plates with fumed gelled electrolyte. Performances meet or exceed the standards specified in DIN 40742, With long design life and high deep cycling capabilities. This battery is recommended for telecom outdoor applications, renewable energy systems and EXTREME environment applications.

OPzV Battery Specification



PRODUCT FEATURES

APPLICATION

※ Completely sealing throughout the batteries life.
※ Service life up to 18-20 years in continuous float operation down to approx.80% capacity.
※ Gel electrolyte.
※ Low gassing thanks to antimony-free alloy and internal oxygen recombination.
※ Minimum space required and room requirements are minimal e.g. no washing facilities needed,
ventilation requirements are minimal.
※ Easy to move and handle.
※ Easy install using cable connectors with insulated terminal covers.
※ Ready for immediate use without further commissioning work.
※ Can be supplied as a standard vertical installation or by special request ,for a horizontal installation.
※ Very low self-discharge ＜50% of rated capacity in 2 years at 20℃ ambient temperature.
※ Deep discharge protected, a load can be connected to the battery for up to 4 weeks.
※ No internal short circuits possible due to the gel structure.
※ No acid stratification, so no equalizing charge necessary.

Telecommunications

UPS&EPS systems

Solar power / wind power systems



STANDARDS COMPLIANT

GB/T 22473-2008

IEC60896-21/22: 2004

IEC61427-2005

DIN43539-T5:1984

DIN40742:1999

BS EN 61427-2002

YD/T1360-2005




Model

Rated

Capacity

(Ah)

Rated

Capacity

(Ah)

Approx Dimension

Approx

Weight

Terminal

Type

Length

Width

Height

Total Height

mm

inch

mm

inch

mm

inch

mm

inch

kg

lbs

OPzV100-2

2

100

103

4.06

206

8.11

355

13.98

390

15.35

13.4

29.54

T11

OPzV200-2

2

200

103

4.06

206

8.11

355

13.98

390

15.35

19.0

41.89

T11

OPzV250-2

2

250

124

4.88

206

8.11

355

13.98

390

15.35

23.0

50.71

T11

OPzV300-2

2

300

145

5.71

206

8.11

355

13.98

390

15.35

26.5

58.42

T11

OPzV350-2

2

350

124

4.88

206

8.11

471

18.54

506

19.92

28.5

62.83

T11

OPzV420-2

2

420

145

5.71

206

8.11

471

18.54

506

19.92

33.5

73.86

T11

OPzV500-2

2

500

166

6.54

206

8.11

471

18.54

506

19.92

38.5

84.88

T11

OPzV600-2

2

600

145

5.71

206

8.11

646

25.43

681

26.81

47.0

103.62

T11

OPzV700-2

2

700

254

10.00

210

8.27

471

18.54

506

19.92

52.0

114.64

T11

OPzV800-2

2

800

191

7.52

210

8.27

646

25.43

681

26.81

63.5

139.99

T11

OPzV900-2

2

900

233

9.17

210

8.27

646

25.43

681

26.81

73.2

161.38

T11

OPzV1000-2

2

1000

233

9.17

210

8.27

646

25.43

681

26.81

78.0

171.96

T11

OPzV1200-2

2

1200

275

10.83

210

8.27

646

25.43

681

26.81

92.5

203.93

T11

OPzV1500-2

2

1500

275

10.83

210

8.27

796

31.34

831

32.72

113.5

250.23

T11

OPzV2000-2

2

2000

399

15.71

214

8.43

772

30.39

807

31.77

153.0

337.31

T11

OPzV2250-2

2

2250

487

19.17

212

8.35

772

30.39

807

31.77

160.0

352.74

T11

OPzV2500-2

2

2500

487

19.17

212

8.35

772

30.39

807

31.77

189.0

416.67

T11

OPzV3000-2

2

3000

576

22.68

212

8.35

772

30.39

807

31.77

225.0

496.04

T11



★Please contact us for more information
★Specification subject to change without prior notice
